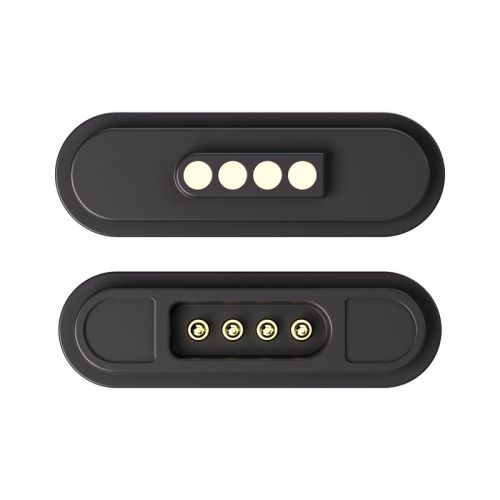

| Category | Item | Specification | Remarks |
| General Notes | Compliance Standard | RoHS / REACH compliant | Material and coating meet EU standards |

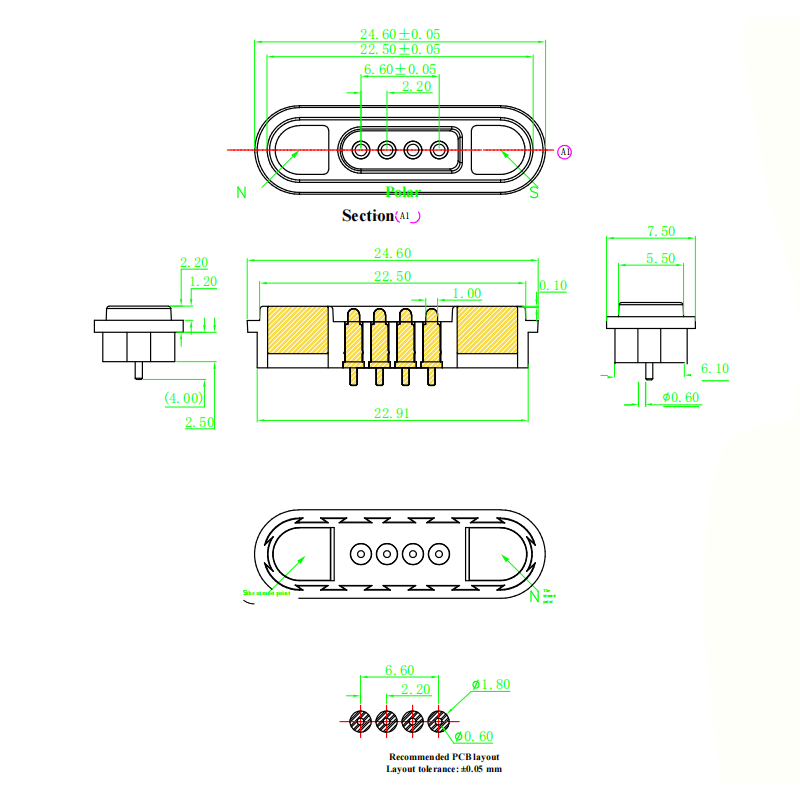

| Key Inspection Mark | Marked with @ on drawings | Critical dimensions for quality control | |
| Mechanical Performance | Contact Force | 80g ± 20g @ 1.0mm working stroke | Spring pin force at rated compression |
| Mechanical Life Cycle | 10,000 mating cycles | No electrical failure after full test | |
| Magnetic Adsorption Force | 300g ± 20% (240g ~ 360g) | Female docking holding force range | |
| Electrical Performance | Rated Voltage | DC 12V | Continuous operating voltage |
| Rated Current | Max. 3A per pin | Continuous operating current per contact | |
| Contact Resistance (Spring Pin) | ≤ 50 mΩ | At initial state |
| Category | Item | Specification | Remarks / 备注 |
| General Notes | Compliance Standard | RoHS & REACH compliant | Material and coating meet EU standards |
| Key Inspection Dimension | Marked with @ on drawings | Critical dimensions for quality control | |
| Electrical Performance | Rated Voltage | DC 12V | Continuous operating voltage |
| Rated Current | Max. 3A | Continuous operating current | |
| Contact Resistance (Spring Pin) | ≤ 50 mΩ | Initial state contact resistance | |
| Materials - Magnet | Material / Coating | NdFeB N52, Ni plating 60~100u | Silver color, P/N: CT0014 |
| Materials - Turning Parts | Material / Coating | Brass C3604, Au plating 5u | Gold color, P/N: CPTZ0344 |
| Materials - Plastic Housing | Material / Grade | High-temperature Nylon (HTN), UL94 V-0 | Black color, P/N: CXSJ0046 |
