모형: CPCX0068
| 다운로드 | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Specification |

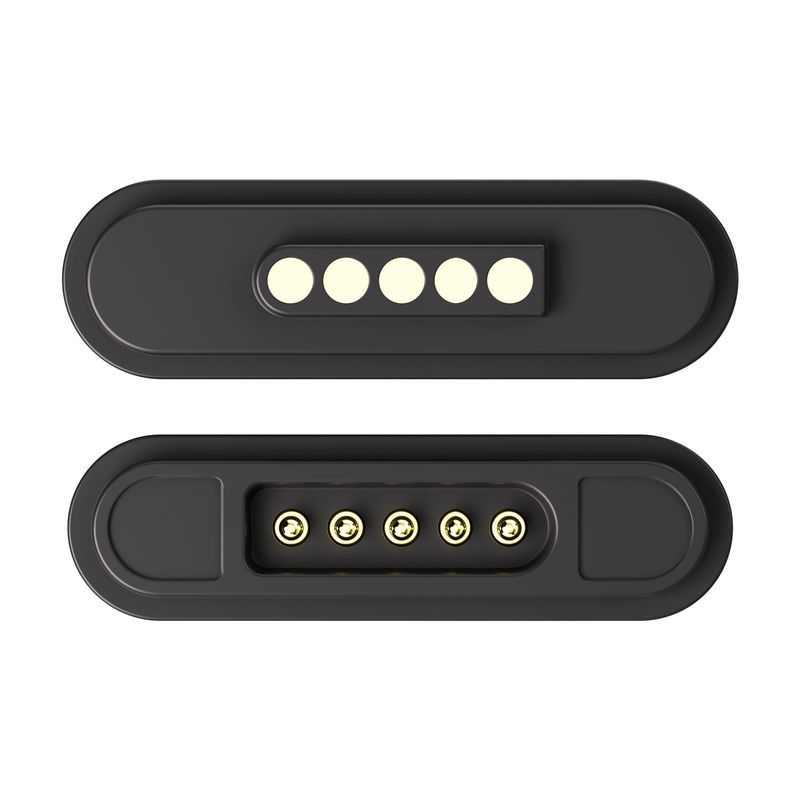

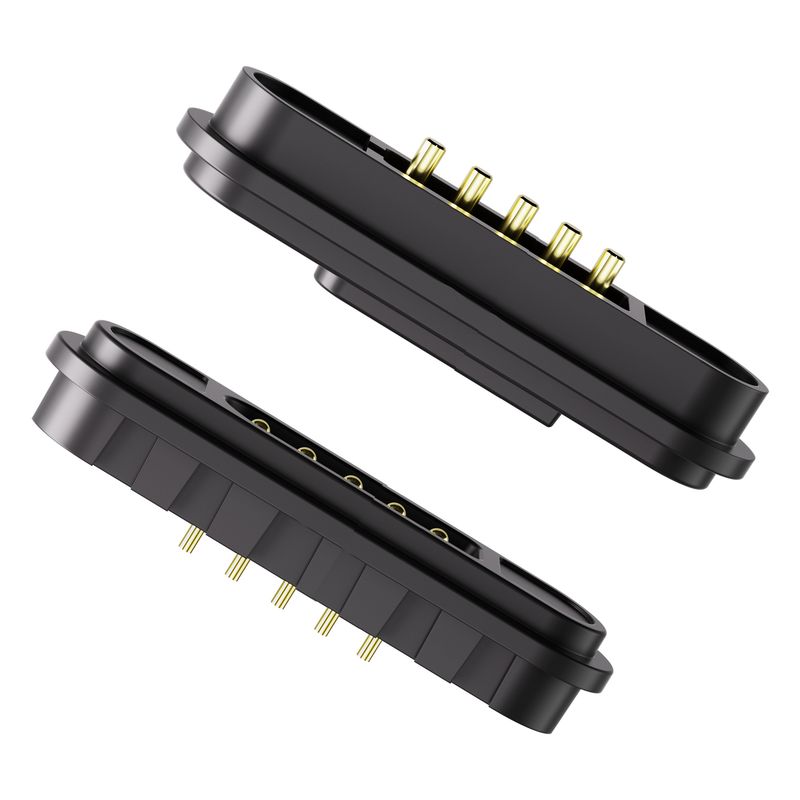

| Product Name | 5 Pin Magnetic Pogo Pin Connector |
| Pin Count | 5 Pins |

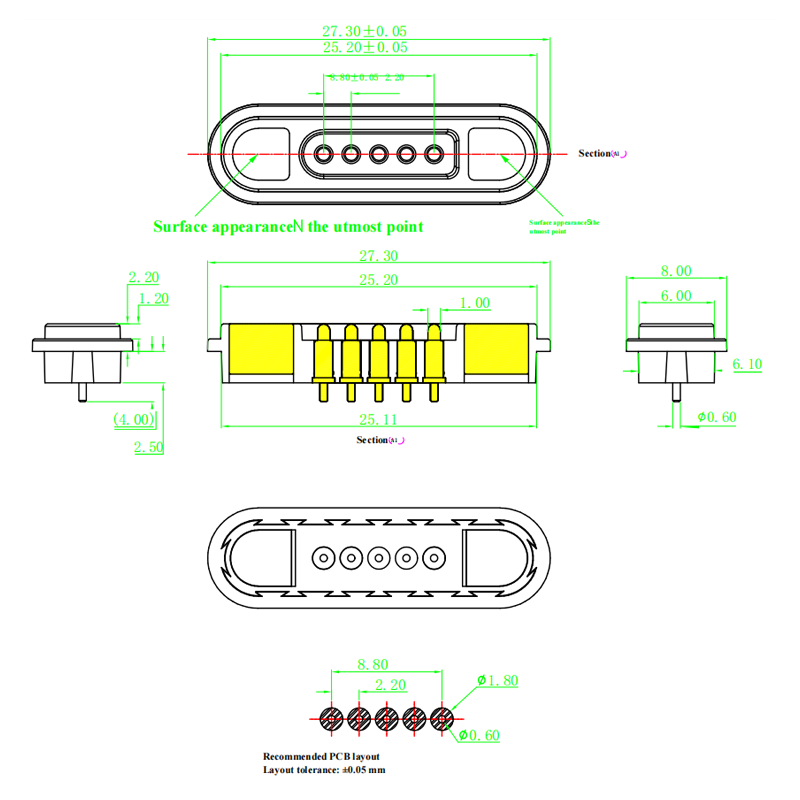

| Overall Length | 27.30 ± 0.05 mm |
| Contact Area Length | 25.20 ± 0.05 mm |
| Pin Pitch | 2.20 mm |
| Pin Diameter | Ø1.80 mm |
| Height (Connector) | Approx. 6.10 mm |
| Working Stroke | 1.0 mm |
| Contact Force | 80g ± 20g |
| Rated Voltage | DC 12V |
| Rated Current | Max. 3A |
| Contact Resistance | ≤ 50 mΩ |
| Life Cycle | ≥ 10,000 cycles |
| Magnetic Force | 300g ± 20% |
| Operating Type | Spring Loaded Pin Connector |
| No. | Component | Material | Plating | Color | Notes |
| 1 | Plastic Housing | High Temp Nylon (HTN UL94 V-0) | — | Black | Flame retardant |
| 2 | Plunger (Pin Head) | Brass C3604 | Gold Plating 5u" | Gold | Conductive contact |
| 3 | Barrel (Pin Tube) | Brass C3604 | Gold Plating 5u" | Gold | Structural support |
| 4 | Spring | SUS304 | Gold Plating 1u" | Gold | Elastic component |
| 5 | Magnet | N52 | Ni Plating (60–100u) | Silver | Magnetic alignment |
