| Parameter | General Specification |

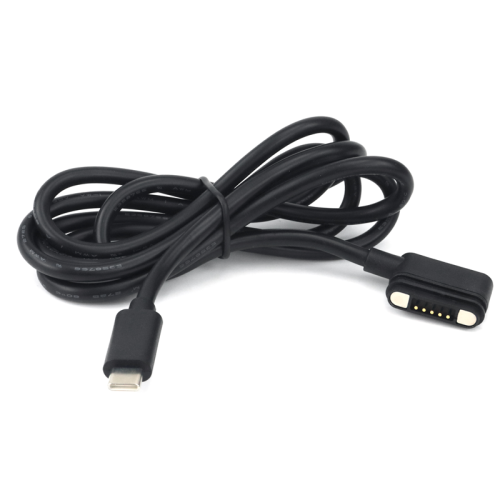

| Product Name | Type-C to 5-Pin Magnetic Charging Cable |
| Model No. | 5P-Magnetic-Cable-TC-001 (customizable) |
| Cable Material | Eco-friendly PVC / TPE (high-elastic TPE optional) |
| Conductor | Pure copper core (standard 24AWG/22AWG; heavy-gauge options available) |
| Cable Length | Standard 1m; customizable: 0.3m / 0.5m / 1.5m / 2m |
| Input Interface | USB Type-C Male |
| Output Interface | 5-Pin Magnetic Connector Male |
| Pin Material | Gold-plated copper (≥1.0μ gold thickness; customizable) |
| Magnet Specification | N52 Neodymium magnets with anti-reverse dual-magnet positioning |
| Rated Voltage | DC 5V / 12V (standard 5V; 9V/12V fast-charge options available) |
| Rated Current | 1A / 2A / 3A (standard 2A; customizable for higher currents) |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000MΩ @ DC 500V |
| Lifespan | ≥10,000 connection cycles (magnetic attachment, low mechanical wear) |
| Operating Temperature | -20℃ ~ +60℃ |
| Protection Rating | IP54 (IP67 achievable when mated with matching female connector) |
| Compatible Devices | Kids' smart watches, industrial handheld devices, small medical devices, wearable electronics |
| Certifications | RoHS / REACH compliant (certificates available upon request) |
| Customization | Cable length, gauge, current rating, pinout definition, and cable color are customizable |
